CLASSIFICATION AND TYPES OF FIRE RESISTANT GLASS


The choice of type of glass depends on the following parameters:


FIRE CLASSIFICATION

Class E: No flames or hot gases on the non-fire side Monolithic glass based on Soda-Lime Wired glass Class EW: Same as Class E plus measured radiated heat in front of the glazing may not exceed 15 kW/m² Float glass with interlayer Coated safety glass Class EI: Heat shield function. On average the temperature may not exceed 140° C above the initial temperature on the non-fire side of the glazing Float glass with multiple interlayer Tempered glass with interlayer

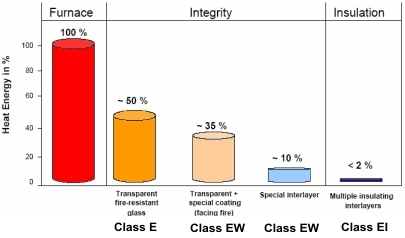

Heat Energy radiation according to glass classification

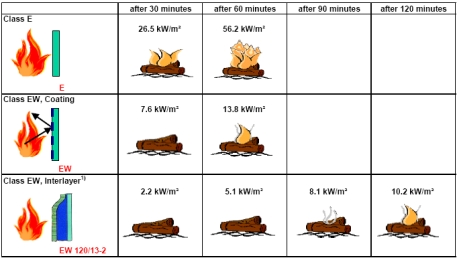

Radiation on the non fire side 1 m in front of the fire protective glazing



SPECIAL CHARACTERISTICS

1. Wired glass	Wired glass
2. Safety: Toughened glass (ESG) Laminated glass (VSG)	Toughened glass	Laminated glass
	Monolithic or Toughened (safety) glass	Laminated glass for safety
3. Sound reduction Double glazed units	Double glazed unit for sound reduction
4. Special compounds Glass with interlayers (non transparent during fire)	Special Compound Glass (Non transparent)
	At the begining of the test	After the fire test
